Diffusion Models for
Contrast Harmonization of
Magnetic Resonance Images

Abstract

Magnetic resonance (MR) images from multiple sources often show differences in image contrast related to acquisition settings or the used scanner type. For long-term studies, longitudinal comparability is essential but can be impaired by these contrast differences, leading to biased results when using automated evaluation tools. This study presents a diffusion model-based approach for contrast harmonization. We use a data set consisting of scans of 18 Multiple Sclerosis patients and 22 healthy controls. Each subject was scanned in two MR scanners of different magnetic field strengths (1.5 T and 3 T), resulting in a paired data set that shows scanner-inherent differences. We map images from the source contrast to the target contrast for both directions, from 3 T to 1.5 T and from 1.5 T to 3 T. As we only want to change the contrast, not the anatomical information, our method uses the original image to guide the image-to-image translation process by adding structural information. The aim is that the mapped scans display increased comparability with scans of the target contrast for downstream tasks. We evaluate this method for the task of segmentation of cerebrospinal fluid, grey matter and white matter. Our method achieves good and consistent results for both directions of the mapping.

Keywords:
Diffusion models, contrast harmonization, image-to-image translation

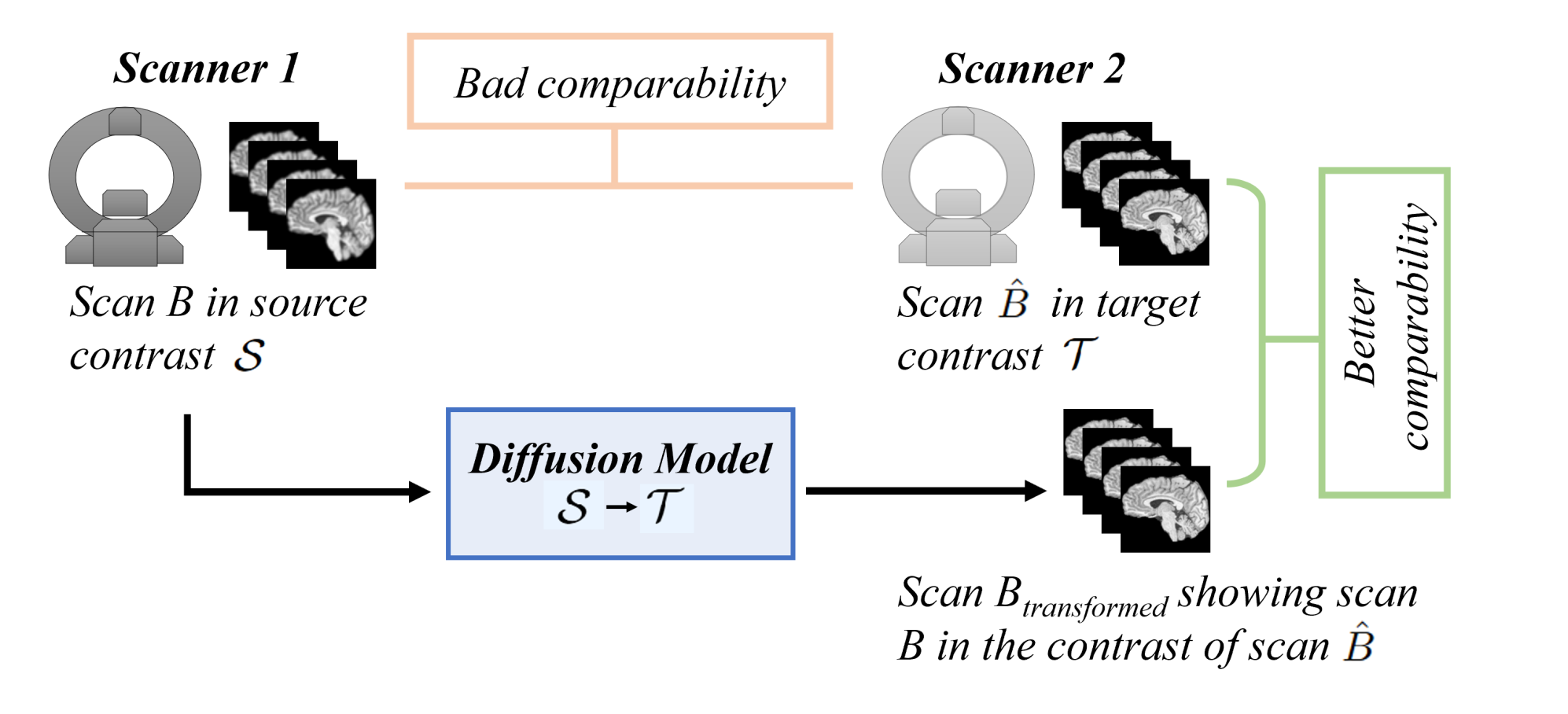

Fig. 1: Overview of our contrast harmonization method. We train a diffusion model using paired data from source contrast S and target contrast T. We translate scan B ∈ S to scan B_transformed that appears in contrast T, allowing better comparability with^B ∈ T in subsequent tasks, such as segmentation.

Contribution

By adapting a Denoising Diffusion Probabilistic Model (DDPM) [1][2] for contrast harmonization, we translate images from a source contrast S to a target contrast T . Considering a pair B ∈ S,^B ∈ T, we map scan B slice-by-slice to scan B_transformed, appearing in the contrast of T, as shown in Fig. 1. We generate consistent three-dimensional (3D) volumes by stacking two-dimensional (2D) slices, allowing us to save memory during image-to-image translation. Compared to the original B, B_transformed presents better comparability with^B from T, with respect to downstream tasks such as segmentation of grey matter (GM), white matter (WM) and cerebrospinal fluid (CSF) using FAST [3]. We achieve good results for both directions. For the equations mentioned in this section we refer to the paper.

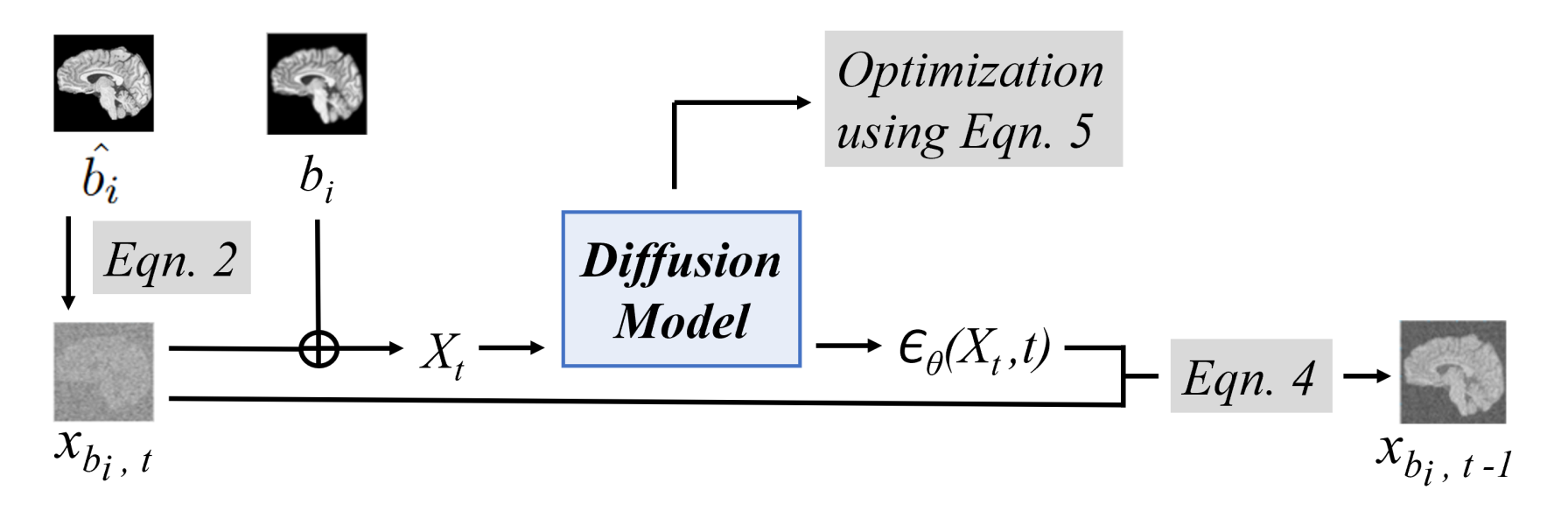

Fig. 2: Overview of the training. Anatomical information is given through the concatenation of image b_i from B ∈ S with noisy image x_bi,t . X_t is used by the diffusion model to predict a slightly denoised image x_bi,t-1 from x_bi,t using Eqn. 4.

During training, shown in Fig. 2, we pick a random timestep t and create a noisy image from^b_i. Since we only want to change the scanner-related image contrast and not any anatomical features, we add anatomical information of our source contrast slice bi through concatenation. The concatenated image then serves as input to our diffusion model that predicts the noise at that time step t. Furthermore, it allows the computation of a slightly denoised image. During sampling, visualized in Fig. 3, the previously trained diffusion model is applied for every slice for every denoising step, whereby anatomical information is again added through concatenation with the source contrast slice. The slices are then stacked to a 3D volume.

Fig. 3: Translation from B ∈ S to B_transformed. Each slice b_i of B ∈ S is iteratively denoised by applying Eqn. 4 for steps t ∈ {T, ..., 1}, whereby slice b_i is used to add anatomical information through concatenation. The 2D output slices {x_bi,0}ni=1 get stacked to B_transformed, showing the input scan B translated to T .

Results

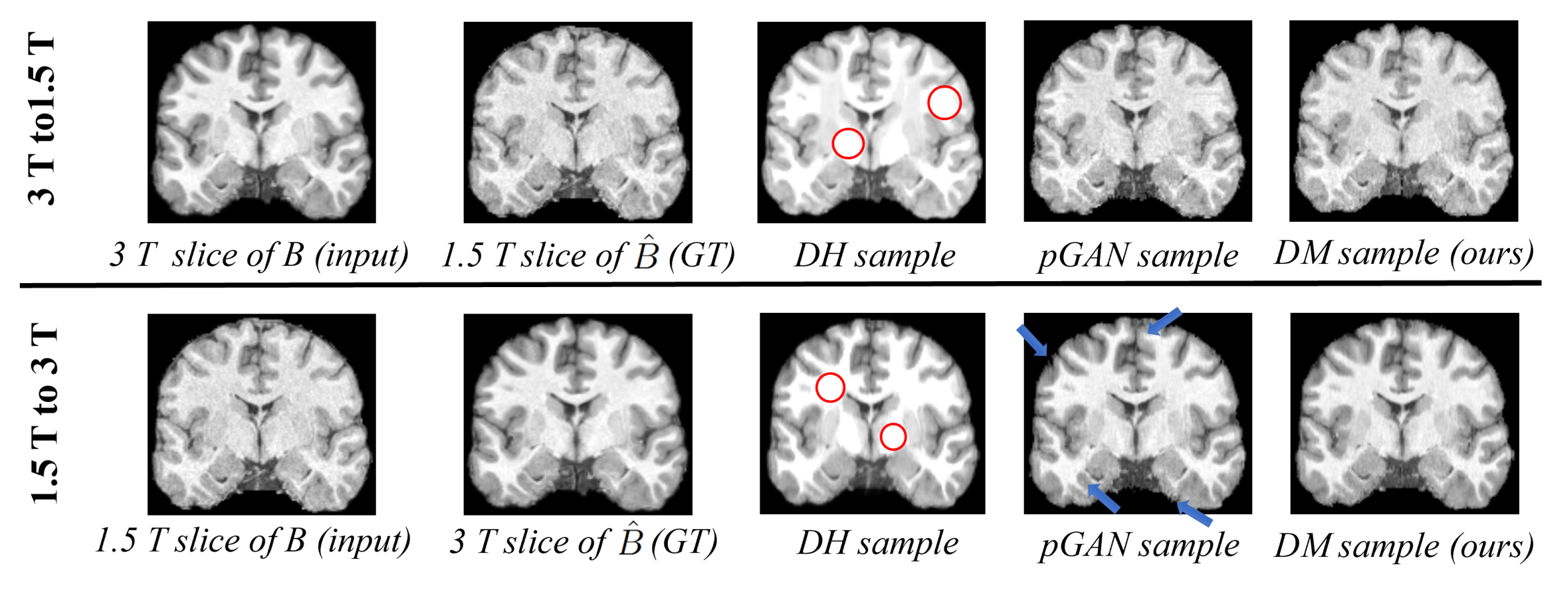

Fig. 4: An exemplary coronal slice of a scan B ∈ S, the corresponding ground truth (GT) slice of^B∈ T and slices of its mappings B_transformed in contrast T generated by DH, pGAN and our DM are shown for both mapping directions. The red circles indicate hyperintense regions generated by DH. The blue arrows point at stripe artifacts produced by pGAN.
